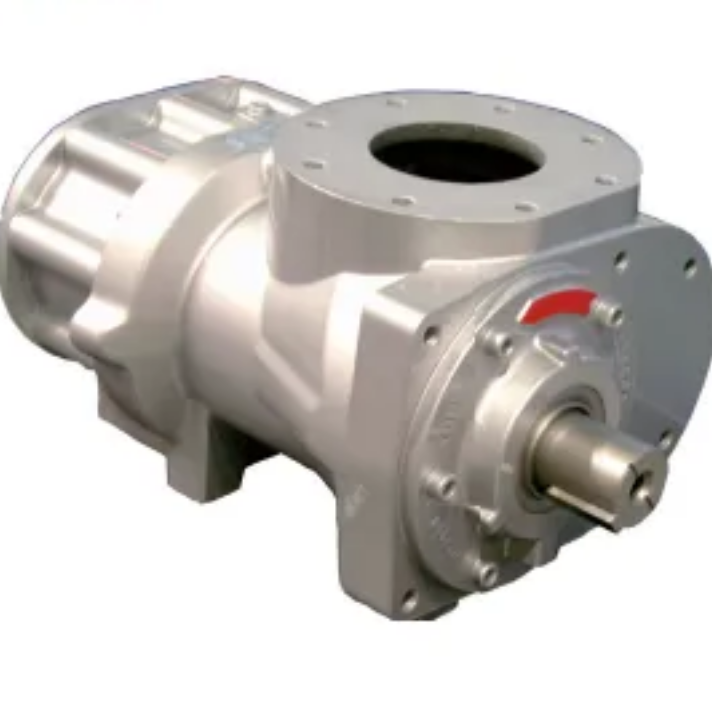

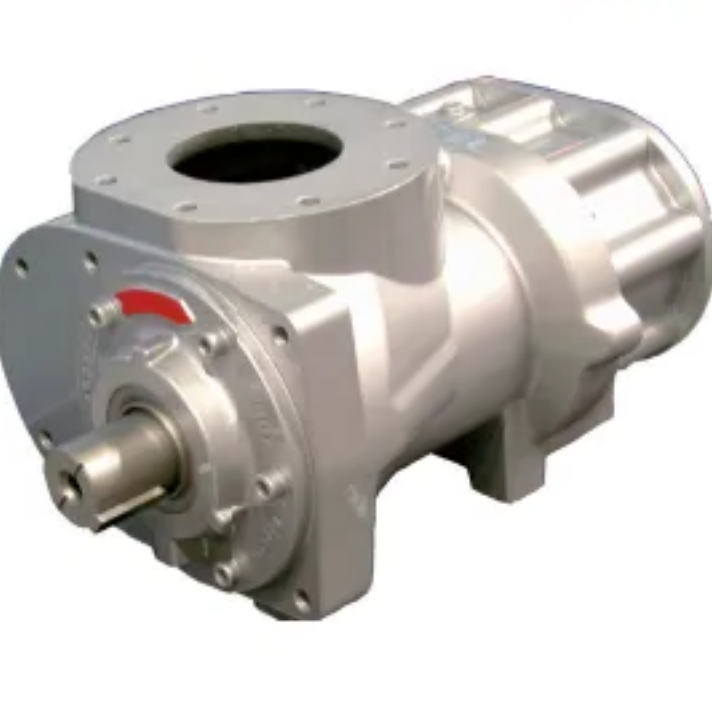

GHH RAND OS110R AIR END Screw compressor
GHH RAND OS110R AIR END Screw compressor - Image 2
GHH RAND OS110R AIR END Screw compressor - Image 3

GHH RAND OS110R AIR END Screw compressor

GHH RAND OS110R AIR END Screw compressor
Catalog, Technical Specifications, Data Sheet Information：

Model: OS110R
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND
GHH RAND
OS110R-0il-InjectedScrew Compressor Airend
The OS110R is a single stage oil-injected screw compressor airend for belt drive anddirect drive systems, which can be used for general industrial applications

Consultation Quote

Products Description

Operating Range

Parameters Units Min Max
Power kW / hp 13.8/18.5 139.3/186.8
Discharge Pressure, abs. bar /psi 6 / 87 16 / 232
Volume Flow m³/min / cfm 2.8/100.5 14.5 / 510.8

Medium: Air, Inlet temp. 20°C/68°F, Discharge temp. 80°C/176°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%

Technical Data

Parameters Units Data
Length mm 550
Width mm 364
Height mm 302
Weight kg 150
Inlet DN mm 125
Outlet DN mm 90
