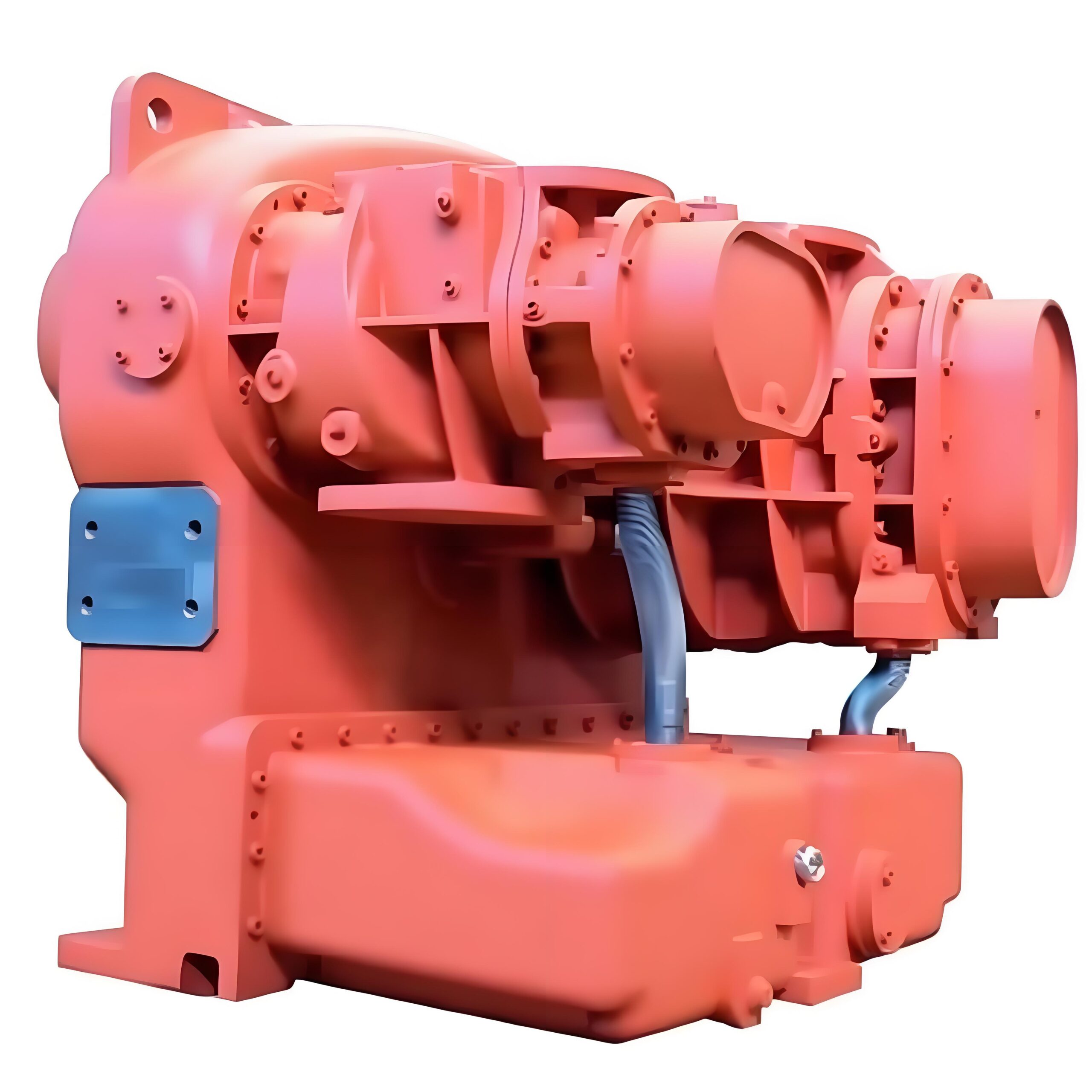

Ingersoll Rand CD42D GHH RAND Air End

Model: CD42D
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction:GHH RAND
CD42D-Oil free screw compressor block
The CD42D is a double stage, gear driven and oil-free screw compressor blockwhich can be used for general industrial applications.

Products Description

Operating Range

Parameters	Units	Min	Max
Power	kW / hp	164 / 220	589 / 790
Discharge Pressure, abs.	bar / psi	4.5* / 65*	11.5 / 159
Volume Flow	m³/h / cfm	2187 / 1287	4881 / 2873

*Proposed minimum pressure, Medium: Air, Inlet temperature 20°C/68°F, RH: 60%
Inlet pressure 1 bar(a)/14.5 psi(a)

Technical Data

Parameters	Units	Data
Length	mm / in	1158 / 45.6
Width	mm / in	1132 / 44.6
Height	mm / in	1098 / 43
Weight	kg / lbs	1760 / 3880

Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
