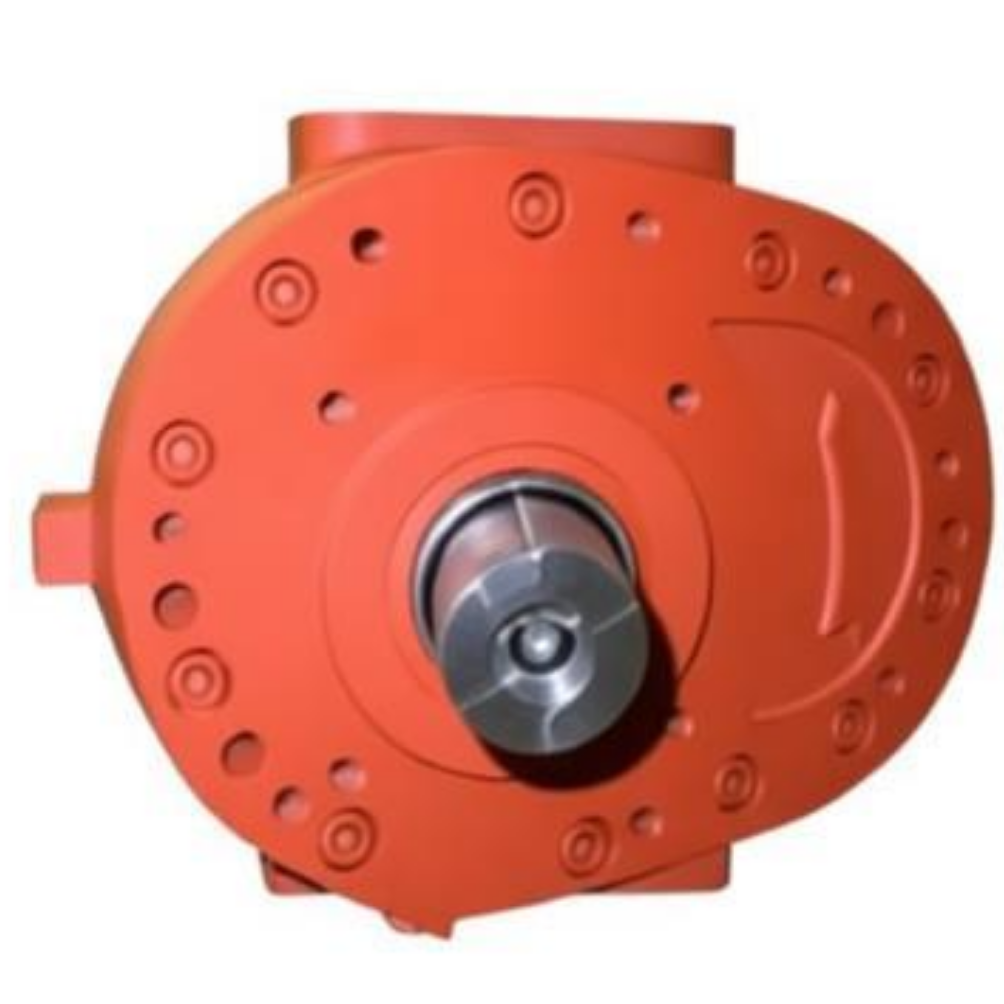

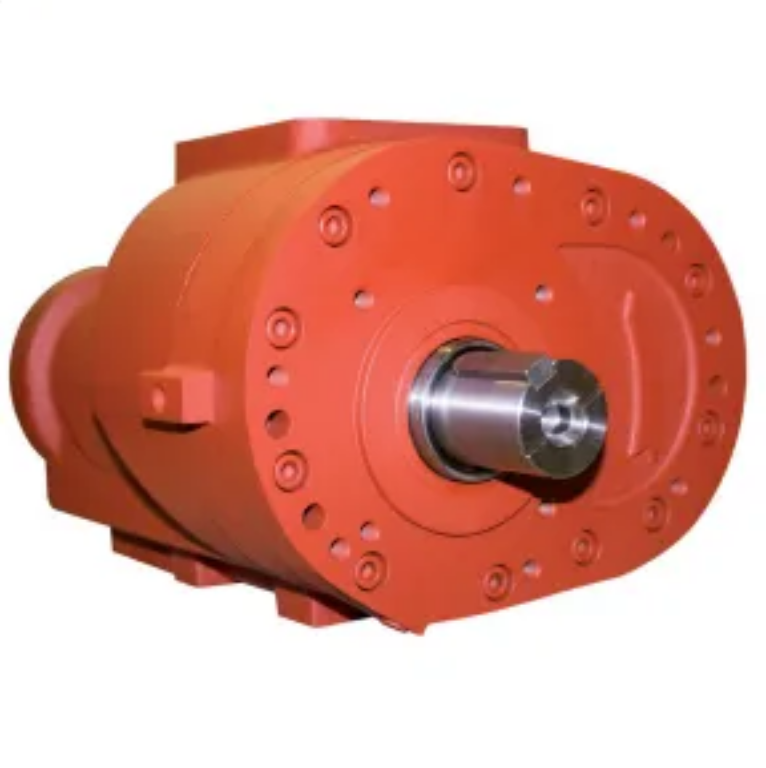

GHH RAND CF90D4 Screw Compressor Air end

Model: CF90D4
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND
CF90D4-0il-InjectedScrew Compressor Airend
The CF90D4 is a single stage oil-injected screw compressor airend for belt drive and direct drivesystems, which can be used for general industrial applications.

Products Description

Operating Range

Parameters	Units	Min	Max
Power	kW / hp	9.6 / 12.9	101/135.8
Discharge Pressure, abs.	bar /psi	6 / 87	16 / 232
Volume Flow	m³/min / cfm	2 / 70.8	10 / 353

Medium: Air, Inlet temp. 20°C/68°F, Discharge temp. 80°C/176°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%

Technical Data

Parameters	Units	Data
Length	mm	481
Width	mm	300
Height	mm	255
Weight	kg	85
Inlet DN	mm	100
Outlet DN	mm	80

Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
