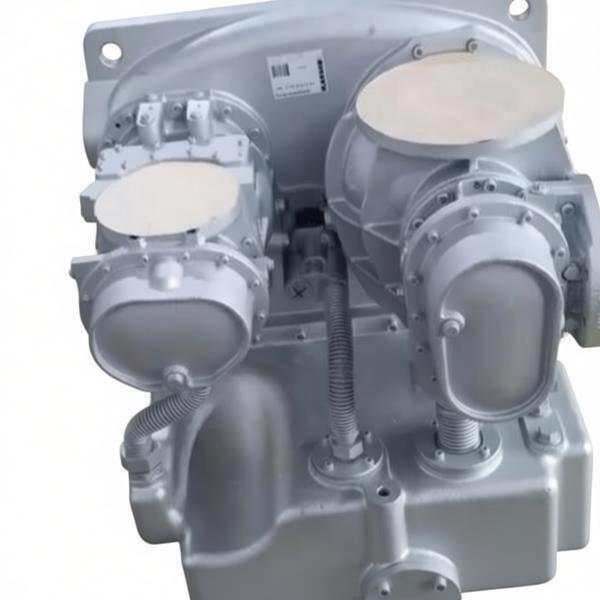

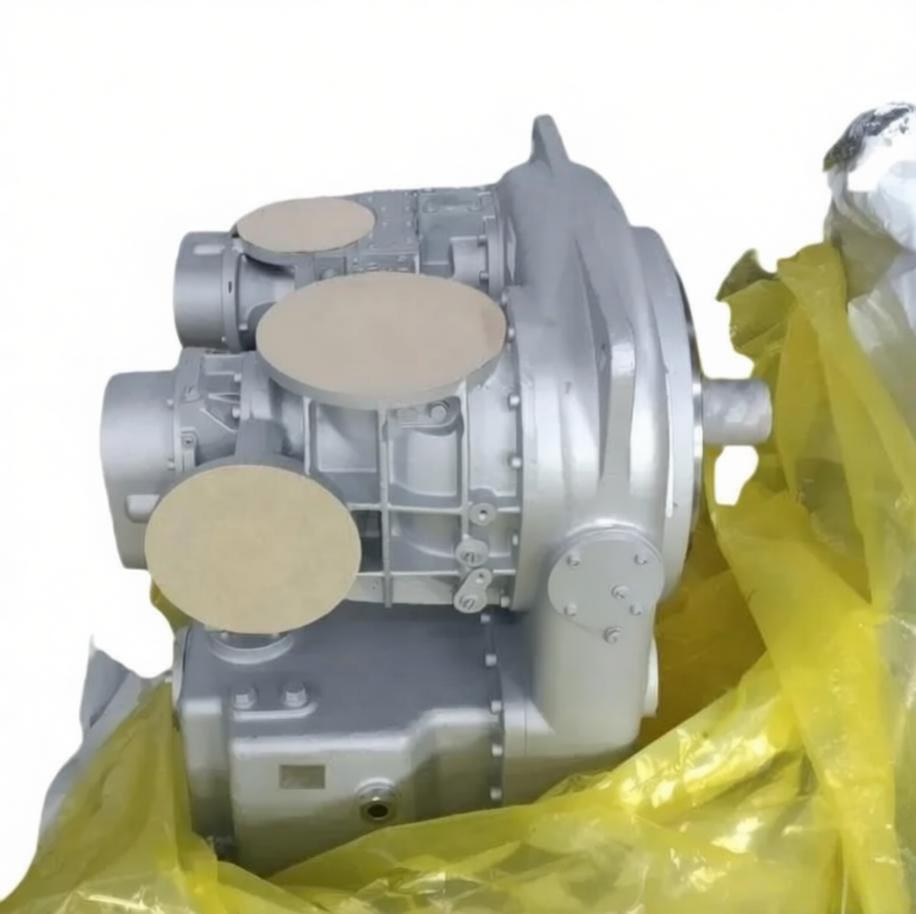

Ingersoll Rand CD14D CD14D1 GHH RAND Air End

Model: CD14D CD14D1
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND
CD14D-Oil free screw compressor block
The CD14D is a double stage, gear driven and oil-free screw compressor blockwhich can be used for general industrial applications.

Say no to counterfeiting and refurbishing goods ！！！！
We provide 100% new and original Ingersoll Rand products:
Buyers can inspect the goods on site, or entrust a freight forwarder to inspect and pick up the goods at the Ingersoll Rand Shanghai Minhang factory.

Products Description

Description

Ingersoll Rand CD14D CD14D1 GHH RAND Air End
Catalog, Technical Specifications, Data Sheet Information：

CD14D – Oil free screw compressor block‌

The CD14D is a double stage, gear driven and oil-free screw compressor block, which can be used for general industrial applications.

‌Operating Range‌

参数	单位	最小值	最大值
Power	kW / hp	58.5 / 78	227 / 304
Discharge Pressure, abs.	bar / psi	4.5* / 65*	11.5 / 167
Volume Flow	$^{m^3}$ /h / cfm	751 / 442	1805 / 1062

*Proposed minimum pressure, Medium: Air, Inlet temperature 20°C/68°F, RH: 60%, Inlet pressure 1 bar(a)/14.5 psi(a)

‌Technical Data‌

参数	单位	数据
Length	mm / in	760 / 29.9
Width	mm / in	730 / 28.7
Height	mm / in	770 / 30.3
Weight	kg / lbs	530 / 1168

Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
