GHH RAND CF128G AIR END Screw Compressor

Model: CF128G
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND
CF128G-0il-Injected
Screw Compressor Airend

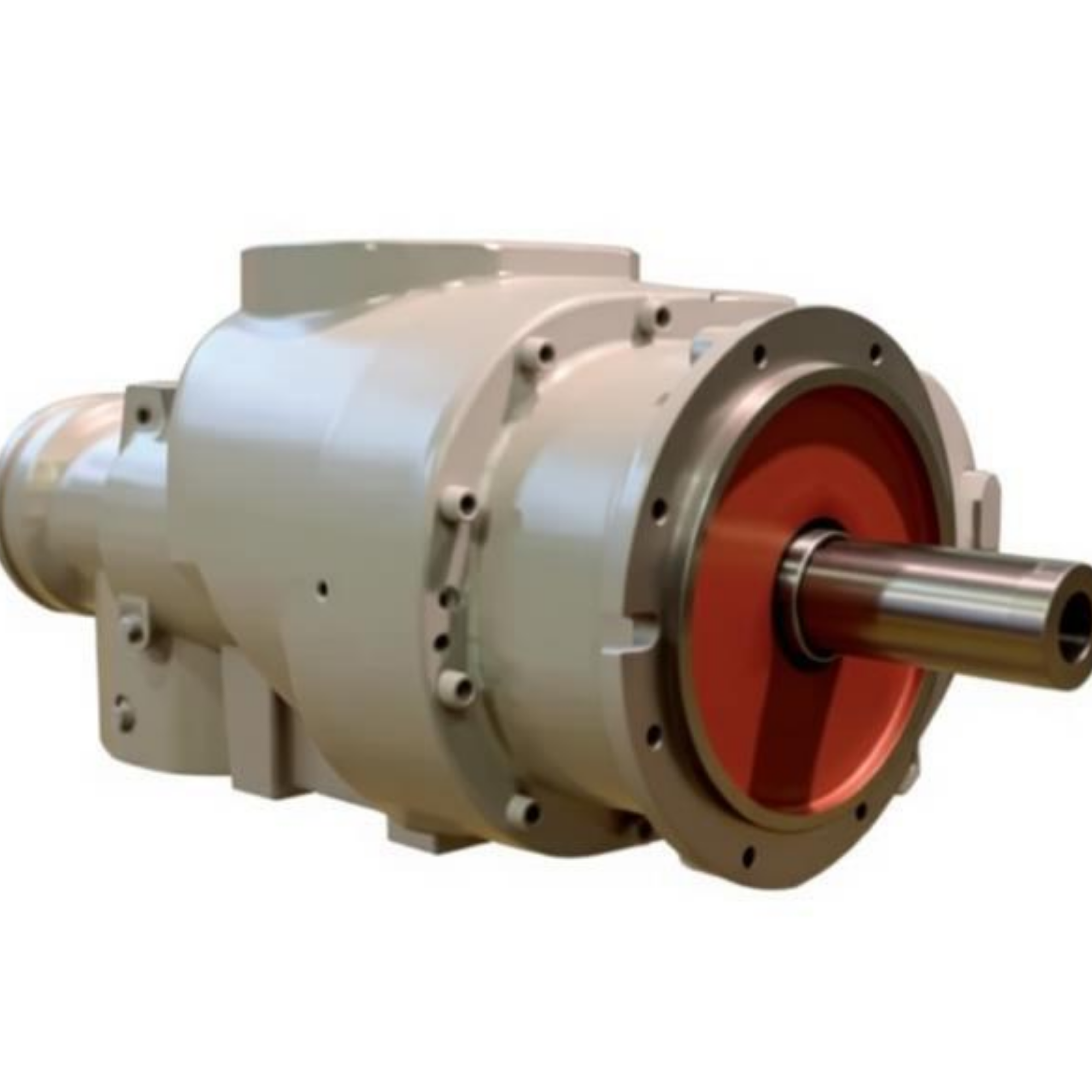

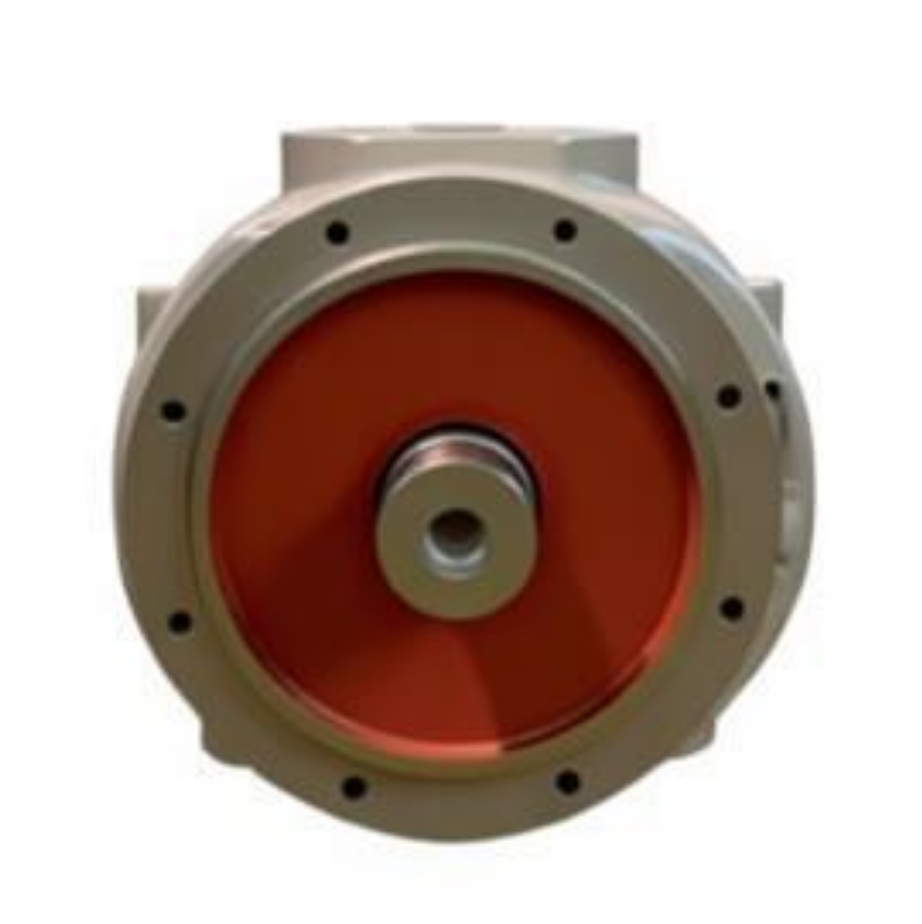

The CF128G is a single stage oil-injected screw compressor airend with an integratedgear drive, which can be used for general industrial applications.

Products Description

Operating Range

Parameters	Units	Min	Max
Power	kW / hp	19.4/26	198/265.7
Discharge Pressure, abs.	bar /psi	6/87	16/232
Volume Flow	m³/min / cfm	4.1/144	20.8/735.4

Medium: Air, Inlet temp. 20°C/68°F, Discharge temp. 80°C/176°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%

Technical Data

Parameters	Units	Data
Length	mm	801
Width	mm	433
Height	mm	370
Weight	kg	280
Inlet DN	mm	150
Outlet DN	mm	125

Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
