Products

Ingersoll Rand CD26S GHH RAND Air End

Model: CD26S
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND

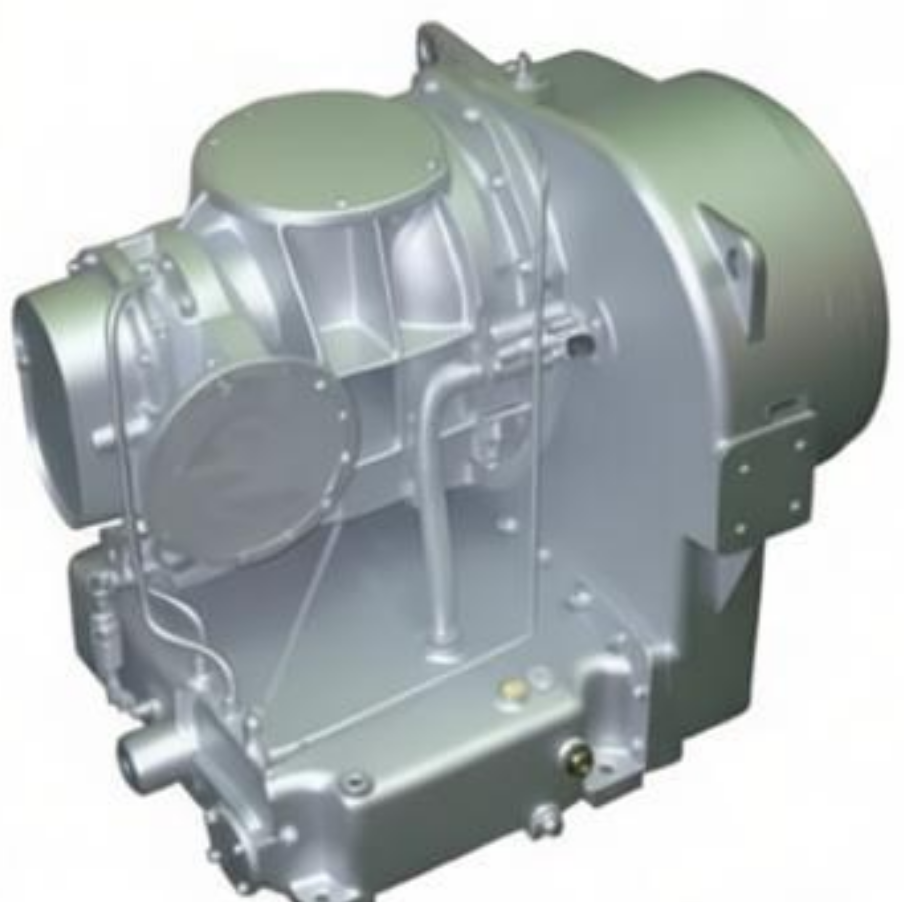

CD26S- Oil free screw compressor block
The CD26S is a single stage, gear driven and oil-free screw compressor blockwhich can be used for general industrial applications.

Products Description

Operating Range

Parameters	Units	Min	Max
Power	kW / hp	46 / 61	231 / 310
Discharge Pressure, abs.	bar / psi	2 / 29	4.6 / 67
Volume Flow	m³/h / cfm	1400 / 824	2986 / 1758

Medium: Air, Inlet temperature 20°C/68°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%

Technical Data

Parameters	Units	Data
Length	mm / in	967 / 38
Width	mm / in	787 / 31
Height	mm / in	865 / 34
Weight	kg / lbs	630 / 1389

Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
