Model: CE55RW
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND

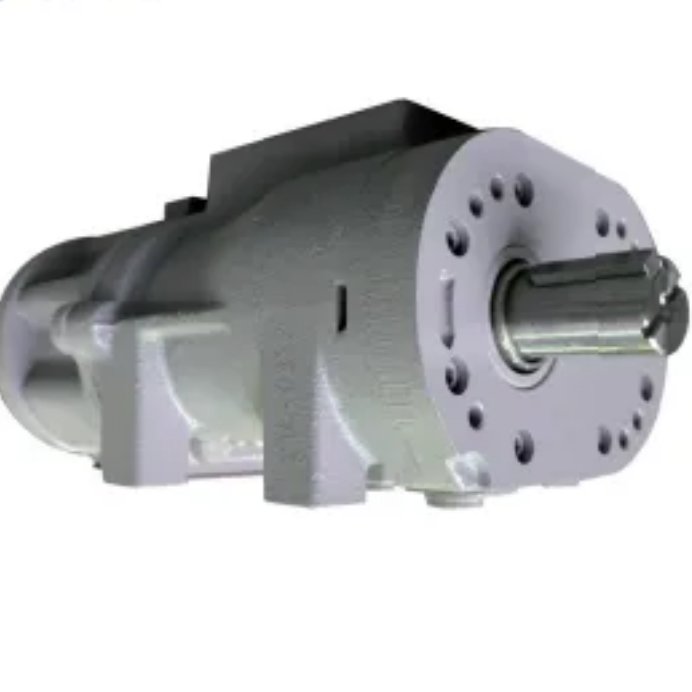

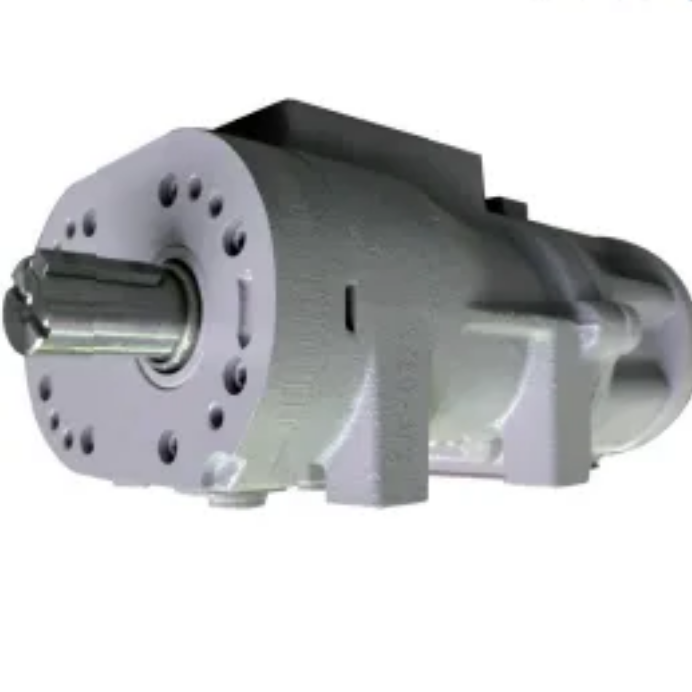

CE55RW-Oil-InjectedScrew Compressor Airend
The CE55RW is a single stage oil-injected screw compressor airend for belt drive anddirect drive systems, which can be used for general industrial applications.
| Parameters | Units | Min | Max |
|---|---|---|---|
| Power | kW / hp | 2 / 2.6 | 22*/29* |
| Discharge Pressure, abs. | bar/psi | 6 / 87 | 14.5 / 210 |
| Volume Flow | m³/min / cfm | 0.35/12.5 | 2.5*/89* |
Medium: Air, Inlet temp. 20°C/68°F, Discharge temp. 80°C/176°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%; *@12.5 bar(a)
| Parameters | Units | Data |
|---|---|---|
| Length | mm | 296 |
| Width | mm | 182 |
| Height | mm | 135 |
| Weight | kg | 21.5 |
| Inlet DN | mm | 70 |
| Outlet DN | mm | G1¼ |
