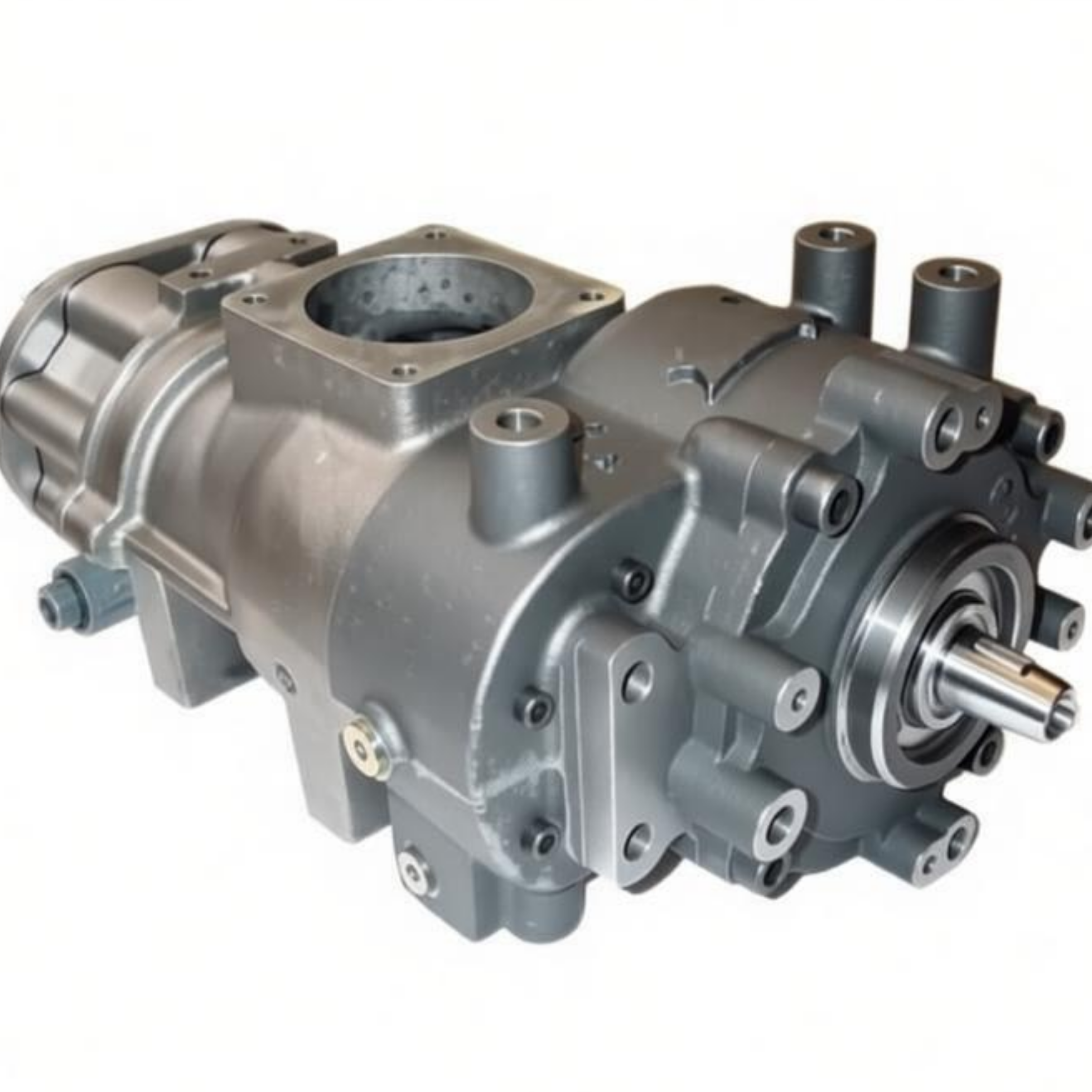

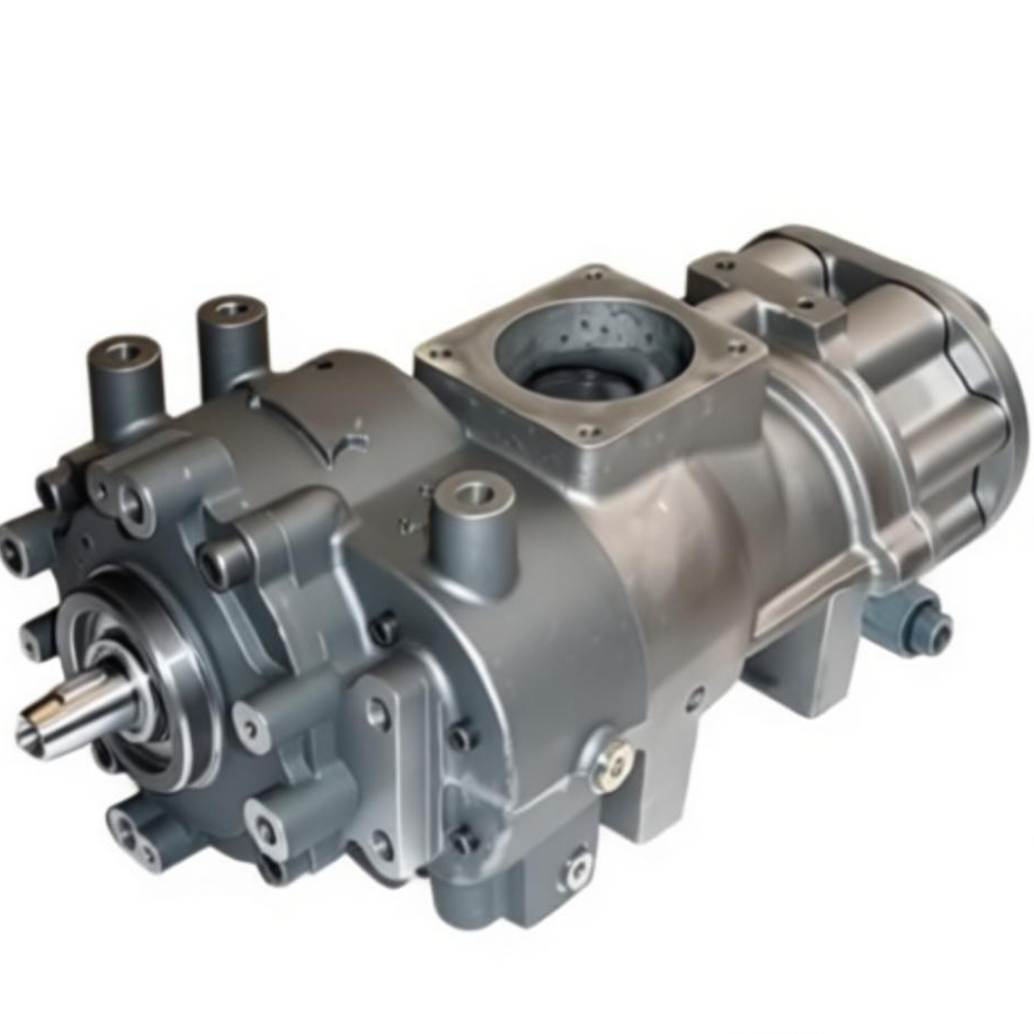

GHH RAND CE55G/G1/G2 Screw compressor AIR END
Catalog, Technical Specifications, Data Sheet Information：
Model: CE55G/G1/G2
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND
CE55G/G1/G2-0il-InjectedScrew Compressor Airend
The CE55G/G1 is a single stage oil-injected screw compressor airend for gear drivensystems, which can be used for a wide range of specialized applications
Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
| Parameters | Units | Min | Max |
|---|---|---|---|
| Power | kW / hp | 2 / 2.7 | 23*/30* |
| Discharge Pressure, abs. | bar /psi | 6 / 87 | 14.5 / 210 |
| Volume Flow | m³/min / cfm | 0.35/12.5 | 2.5*/89* |
Medium: Air, Inlet temp. 20°C/68°F, Discharge temp. 80°C/176°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%; *@12.5 bar(a)
| Parameters | Units | Data |
|---|---|---|
| Length | in (mm) | 14.76 (375) |
| Width | in (mm) | 9 (229) |
| Height | in (mm) | 6.6 (168) |
| Weight | lbs. (kg) | 68 (30.9) |
| Inlet DN | mm | 70 |
| Outlet DN | mm | G1¼ |
| Shaft | Designation | Install. Dwg. | Gear ratio |
|---|---|---|---|
| Parallel | CE55G | 54601331 | 1.744, 2.189 |
| Tapered | CE55G1 | 54478201 | 2.189 |
