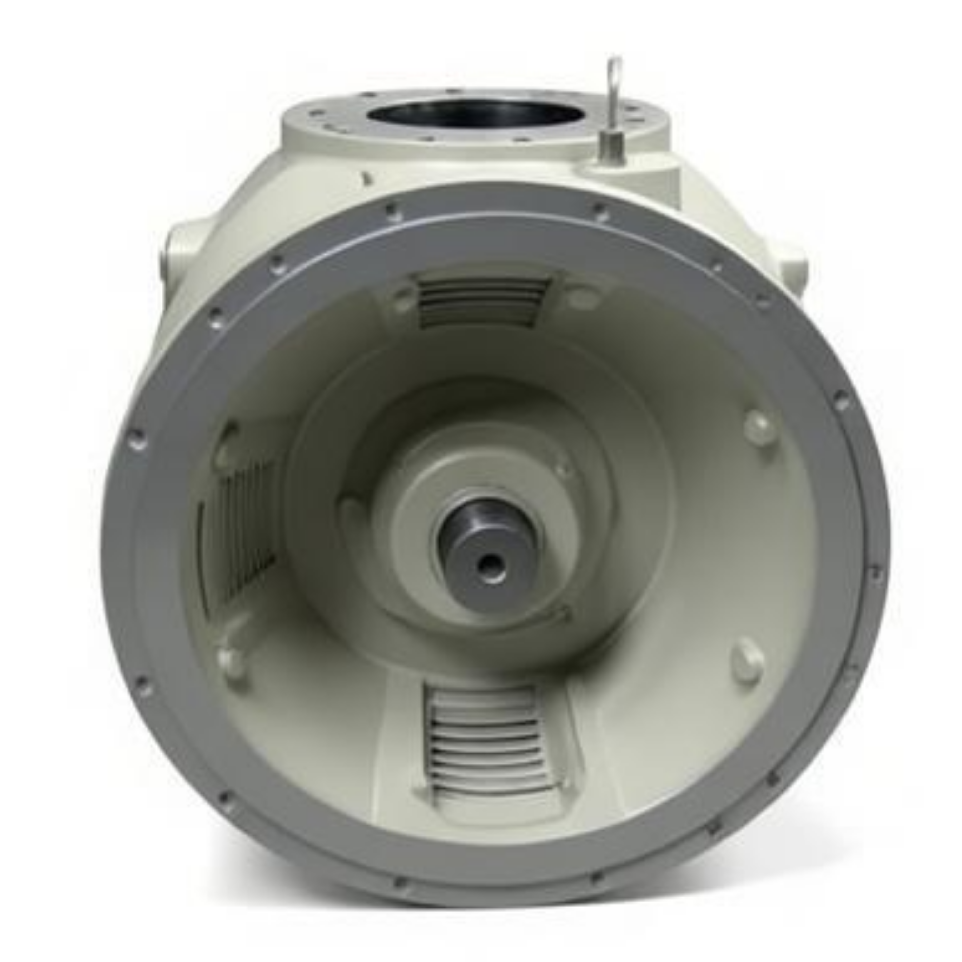

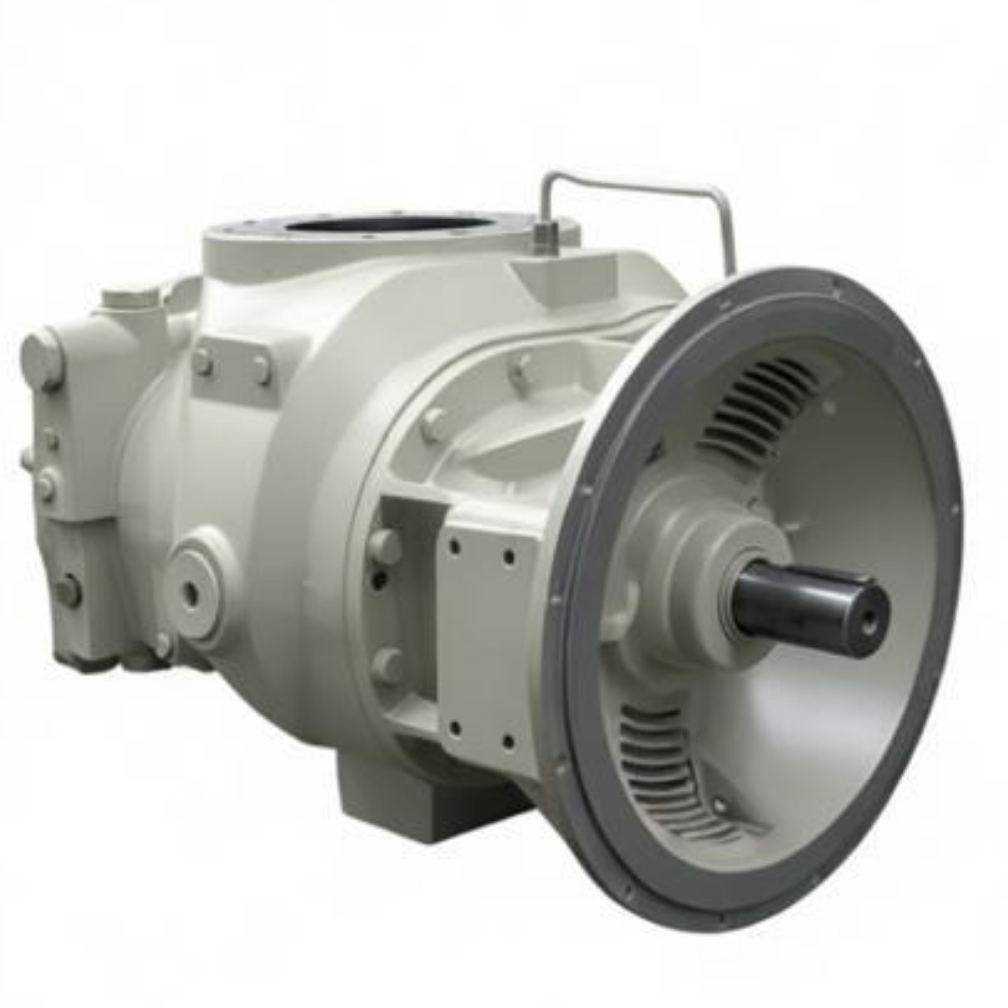

Ingersoll Rand CE177G GHH RAND Air End
Catalog, Technical Specifications, Data Sheet Information：
Technical data Units CE177G
Type of drive Electric motor
or Diesel engine
Volume fl ow *1 cfm 706–1,236
Motor speed rpm 1,475 / 2,975
Outlet pressure (min./max.) psi(a) 87 / 203
Motor rating *1 hp 148–268
Length x Width x Height in 41.3 x 25.6 x 19.3
Weight lbs 1,245.6
Inlet fl ange DIN EN 1092 DN 200
Outlet fl ange DIN EN 1092 DN 125
Oil connection ISO 6149-1 M42 x 2.0
Instrument port at inlet DIN EN 837-1 M14 x 1.5
M12 x 1.5
Instrument port at outlet DIN EN 837-1 2 x M12 x 1.5
Vibration measurement 3 x SPM
Gear sets 0.726, 0.845, 0.877, 0.945, 1.058,
1.140, 1.277, 1.548
