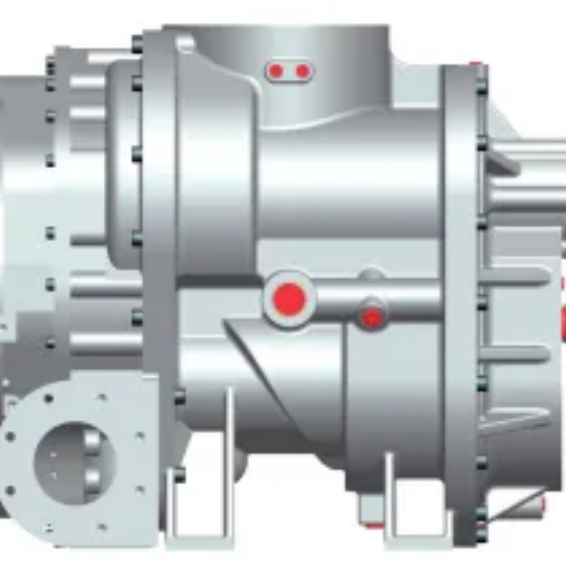

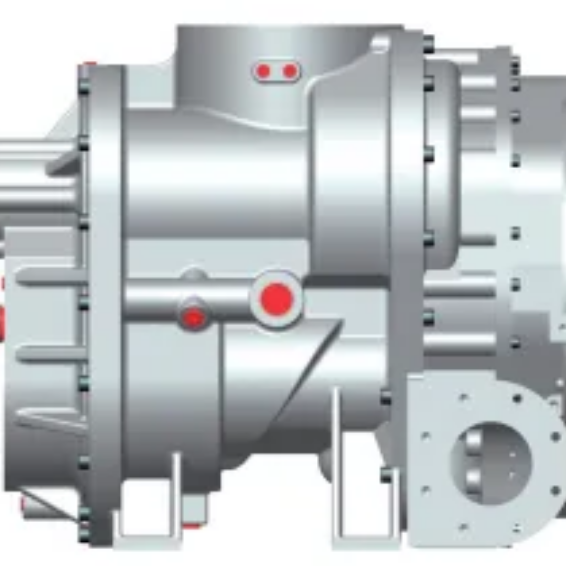

GHH RAND R226/182 Screw Compressor Air End

Model: R226/182
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND
R226/182-Double-stage screw compressorfor specialized applications

Products Description

Technical data

	Units	IR226/182
Type of drive		Integral
Volume flow⁻¹	m³/min (cfm)	36.5 (1,290)
Outlet pressure (min./max.)	bar(a) (psia)	5.5/15.5 (79.8/224.8)
Power (min./max.)	kW (hp)	192.3 (257.9)
*Length x Width x Height	mm (inch)	929 x 628 x 783 (36.5 x 24.7 x 30.8)
Weight	kg (lbs)	981 (2,163)
Inlet flange	mm (inch)	200 (7.8)
Discharge flange	mm (inch)	125 (4.9)
Oil connection	ISO 6149-1	M42 x 2
Instrument port at inlet	ISO 6149-1	2 x M14 x 1.5
Instrument port at outlet	ISO 6149-1	2 x M12 x 1.5
Vibration measurement		5 x M8
Separator scavenge	ISO 6149-1	M14 x 1.5

Highlights

Two stage design with precision machined rotors providing highest efficiency
Coolant curtain in 1st and 2nd stage:
- Decreasing the energy required for compression in the 2nd stage
- Eliminating the need for an intercooler
Taper roller bearings providing linear contact for thrust loads thereby dramatically increasing the life of the air end
Compressing the air in two stages means considerable energy savings
Highest quality bearings assure years of reliable, efficient service
Time-proven two-stage air end with a reputation for trouble-free operation and minimal maintenance

Medium

Air, inlet temperature 20°C/68°F, inlet pressure 1 bar(a)/14.5 psia
Note: *1 estimated at 7 bar(a)/101 psia

Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
