Model: CF180R
Brand: GHH RAND
Company: Ingersoll Rand
Origin: Ingersoll Rand Asia Pacific China
Product Introduction: GHH RAND

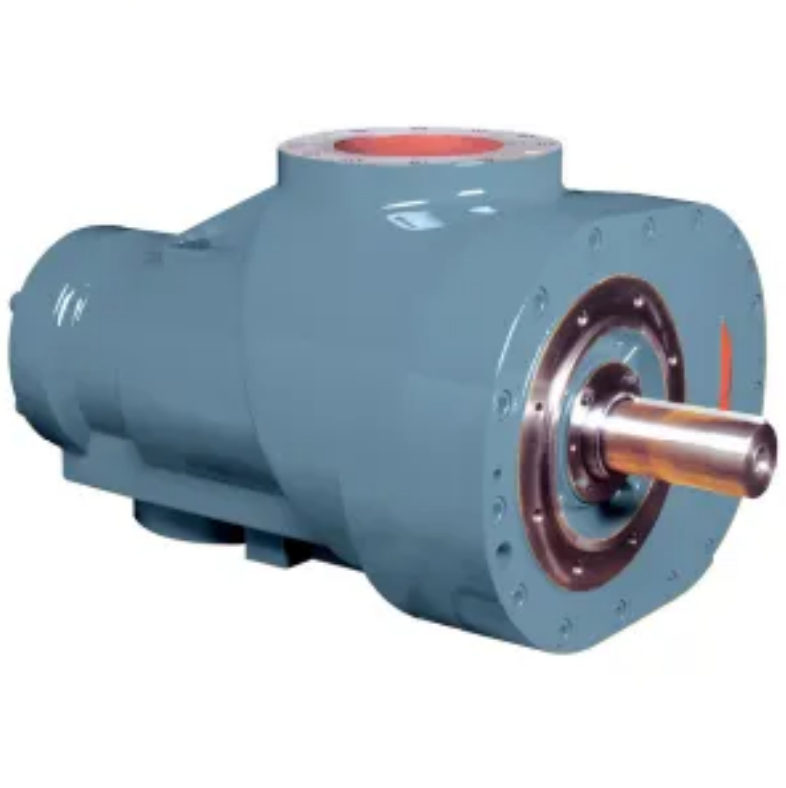

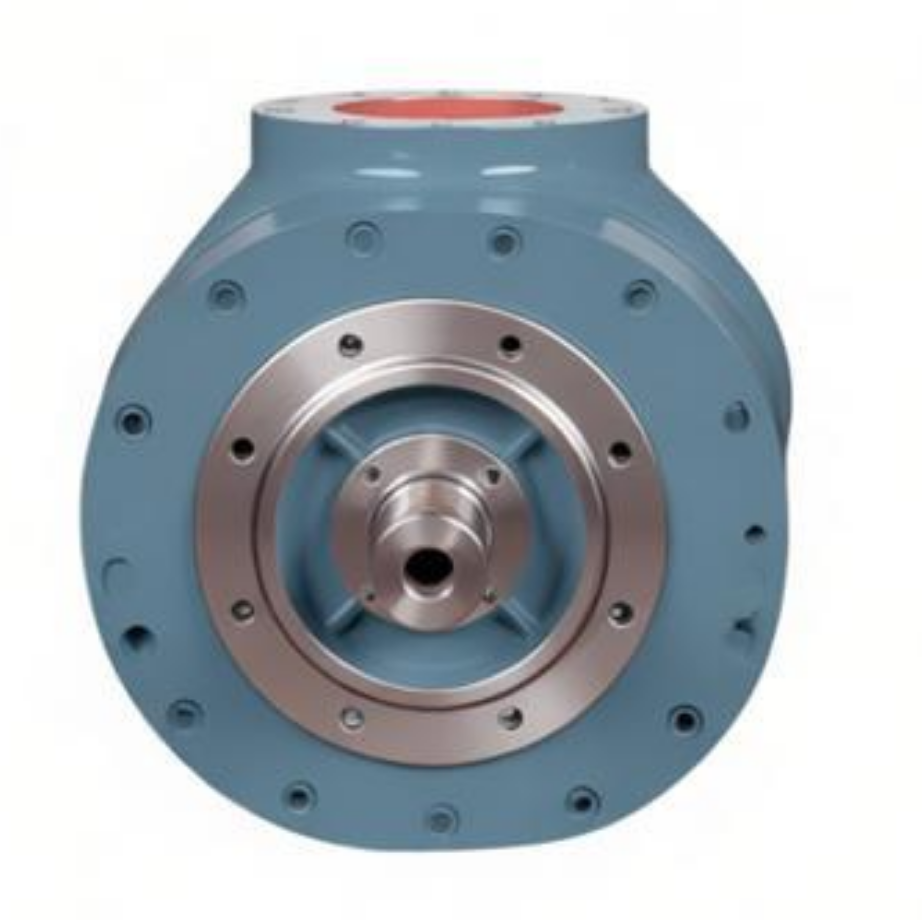

CF180R-0il-InjectedScrew Compressor Airend
The CF180R is a single stage oil-injected screw compressor airend for belt drive anddirect drive systems, which can be used for general industrial applications
| Parameters | Units | Min | Max |
|---|---|---|---|
| Power | kW / hp | 38.8/52 | 385.4/517 |
| Discharge Pressure, abs. | bar /psi | 6/87 | 16/232 |
| Volume Flow | m³/min / cfm | 7.9/278 | 41.4/1462 |
Medium: Air, Inlet temp. 20°C/68°F, Discharge temp. 80°C/176°F, Inlet pressure 1 bar(a)/14.5 psi(a), RH: 60%
| Parameters | Units | Data |
|---|---|---|
| Length | mm | 987 |
| Width | mm | 626 |
| Height | mm | 535 |
| Weight | kg | 725 |
| Inlet DN | mm | 200 |
| Outlet DN | mm | 150 |
Ingersoll Rand GHH RAND AIR END：
✔ CDC61/CDC41 ，CDA80 ，CDB54， CDA96， CDB68， CDA128， CDB90， CDA160
✔ CD8D，CD14D，CD26D，CD42D
✔ CD14S，CD26S，CD26S-Jet，CD42S，CD42S-Jet，CD72S，CD72S-Jet
✔ CE55C/O CF75D8 CF75D8 CF90D4 CF90D4 CF90G6 178.5 226MM-WW 285 178.5SPA
✔ EN2，EN3，CE55，E6，OS70，CF75，E12，CF90，EN20*，CF90L，E25，OS110，EN40*，IR178.5 (CE140)，CF128，EN55，CF128L，E75，IR226 (CE177)，CF180，E175，IR285 (CE224)，321MM，IR350，IR226/182，HR2.0，HR2.5，CF1000H，IR2x285
